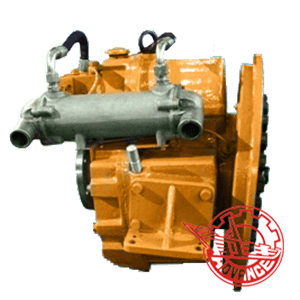

MV100A 7° Down Angle ADVANCE Gearbox ratio range is 1.23-2.87, transmission capacity is 0.08-0.10 kW/rpm. Input speed is 1000-3000rpm, max. power 300kW at 3000rpm.
Standard Configuration
- Hydraulic control system
- Oil cooler
- Oil filter
- Oil pressure gauge
- Bell housing
- Output coupling
- Mounting bracket
- CCS certificate
| MV100A 7° Down Angle Ratio | Transmission Capacity (kW/rpm) |
| 1.23 1.28 1.62 2.07 | 0.10 |
| 2.56 | 0.09 |
| 2.87 | 0.08 |
Note:
- ADVANCE MV100A 7° down angle gearbox input speed range is 1000-3000rpm.
- Transmission capacity indicates the proportion of the engine continuous power to the rated speed (kW/rpm). When selecting model, the actual transmission capacity should be smaller than the data listed.
Technical Data of ADVANCE MV100A 7° Down Angle Marine Gearbox
- 7° Down angle
- Mechanical control
- Center distance 0mm
- Rated propeller thrust 20KN
- Mechanical efficiency ≥ 0.96
- Rotation direction of output shaft, same with that of input shaft at ahead position
- Permissible angle of inclination, 10° longitudinally, 15° transversely
– Flywheel housing (SAE 1 2 3)
– Flywheel (SAE 14 11.5)
– Oil temperature gauge
– Shaft coupling (companion coupling) with bolts and nuts
– Dimension 485mm*508mm*580mm
– Net weight 220kg
- MV100A 7° Down Angle Gearbox Datasheet
- ADVANCE Gearbox Catalogue
- MV100A 7° Down Angle Service Manual
- MV100A 7° Down Angle PDF Drawing
* Specifications subject to change without prior notice in the interest of continual product improvement. Technical data should be based on technical agreement for each order. Please contact our sales representative for engineering specifications, Survey Society Approvals and Classifications.
