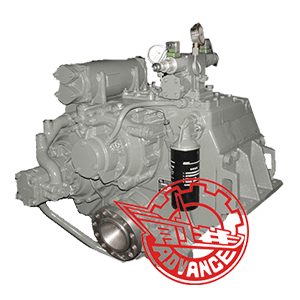

HCAM500 10° Down Angle ADVANCE Gearbox ratio range is 1.35-3.00, transmission capacity is 0.398 kW/rpm. Input speed is 1000-2600rpm, max. power 1034.8kW at 2600rpm.
Standard Configuration
- Hydraulic control system
- Oil cooler
- Oil filter
- Oil pressure gauge
- Bell housing
- Output coupling
- Mounting bracket
- CCS certificate
| HCAM500 10° Down Angle Ratio | Transmission Capacity (kW/rpm) |
| 1.35 2.03 3.00 | 0.398 |
Note:
- ADVANCE HCAM500 10° down angle gearbox input speed range is 1000-2600rpm.
- Transmission capacity indicates the proportion of the engine continuous power to the rated speed (kW/rpm). When selecting model, the actual transmission capacity should be smaller than the data listed.
Technical Data of ADVANCE HCAM500 10° Down Angle Marine Gearbox
- 10° Down angle
- Electric control
- Center distance 326mm
- Rated propeller thrust 50KN
- Mechanical efficiency ≥ 0.96
- Rotation direction of output shaft, contrary to that of input shaft at ahead position
- Permissible angle of inclination, 10° longitudinally, 15° transversely
– Flywheel housing (SAE 0 1)
– Flywheel (SAE 18 16)
– Toothed rubber blocks / Highly flexible coupling
– Oil temperature gauge
– Alarm device (oil temperature, working pressure, lubricating pressure)
– Shaft coupling (companion coupling) with bolts and nuts
– Dimension 852mm*950mm*901mm
– Net weight 500kg
- HCAM500 10° Down Angle Gearbox Datasheet
- ADVANCE Gearbox Catalogue
- HCAM500 10° Down Angle Service Manual
- HCAM500 10° Down Angle PDF Drawing
* Specifications subject to change without prior notice in the interest of continual product improvement. Technical data should be based on technical agreement for each order. Please contact our sales representative for engineering specifications, Survey Society Approvals and Classifications.
