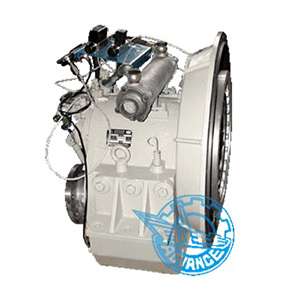

Advance marine gearbox HCA302 7° down angle ratio range is 1.52-2.95 with rate 0.235-0.25kW/rpm. Input speed is 1000-2300rpm, max. power 575kW at 2300rpm.
Standard Configuration
- Hydraulic control system
- Oil cooler
- Oil filter
- Oil pressure gauge
- Bell housing
- Output coupling
- Mounting bracket
- CCS certificate
| Ratio | 1.52 1.96 2.57 | Rate (kW/rpm) | 0.25 |
| 2.95 | 0.235 |
Note:
- Advance HCA302 7° down angle gearbox input speed range is 1000-2300rpm.
- Rate indicates the proportion of the engine continuous power to the rated speed (kW/rpm). When selecting model, the actual rate should be smaller than the data listed.
Technical Data of Advance HCA302 7° Down Angle Marine Gearbox
- 7° Down angle
- Flywheel housing (SAE 1)
- Flywheel (SAE 14)
- Center distance 267.5mm
- Rated propeller thrust 40KN
- Mechanical efficiency ≥ 0.96
- Rotation direction of output shaft, contrary to that of input shaft at ahead position
- Permissible angle of inclination, 10° longitudinally, 15° transversely
– Mechanical control / Electric control
– Toothed rubber blocks / Highly flexible coupling
– Oil temperature gauge
– Alarm device (oil temperature, working pressure, lubricating pressure)
– Shaft coupling (companion coupling) with bolts and nuts
– Dimension 560mm*585mm*764mm
– Advance Gearbox Catalogue
– Datasheet
– Service Manual
– PDF Drawing
* Specifications subject to change without prior notice in the interest of continual product improvement. Technical data should be based on technical agreement for each order. Please contact our sales representative for engineering specifications, Survey Society Approvals and Classifications.
